TECHNICAL SPECIFICATIO

——————————————————————————————————————————————————————————————————————————————————————
Filter Media Nylon/PTFE/Hydrophilic PTFE/MCE/RC/CA/PES/PVDF/Hydrophilic PVDF
——————————————————————————————————————————————————————————————————————————————————————
Housing PP
——————————————————————————————————————————————————————————————————————————————————————
Diameter(mm) 13,25,30
——————————————————————————————————————————————————————————————————————————————————————
Pore size(μm) 0.1,0.22,0.45,1.0,3.0,5.0
——————————————————————————————————————————————————————————————————————————————————————
Sealing Technology Injection molding
——————————————————————————————————————————————————————————————————————————————————————
Filtration Area(cm²) 0.92, 2.98, 4.9
——————————————————————————————————————————————————————————————————————————————————————
Inlet/outlet connections Female luer Lock/Male luer slip
——————————————————————————————————————————————————————————————————————————————————————
Max.operation pressure 6 bar@ 23℃
——————————————————————————————————————————————————————————————————————————————————————

ORDER INFORMATION

Part No.	Membrane	Diameter(mm)	Pore Size(μm)	Packing(pcs/pk)
S13NY022A	NY	13	0.22	100
S13NY045A		13	0.45
S25NY022A		25	0.22
S25NY045A		25	0.45
S30NY022A		30	0.22
S30NY045A		30	0.45
S13PES022A	PES	13	0.22	100
S13PES045A		13	0.45
S25PES022A		25	0.22
S25PES045A		25	0.45
S30PES022A		30	0.22
S30PES045A		30	0.45
S13CA022A	CA	13	0.22	100
S13CA045A		13	0.45
S25CA022A		25	0.22
S25CA045A		25	0.45
S30CA022A		30	0.22
S30CA045A		30	0.45
S13MCE022A	MCE	13	0.22	100
S13MCE045A		13	0.45
S25MCE022A		25	0.22
S25MCE045A		25	0.45
S30MCE022A		30	0.22
S30MCE045A		30	0.45
S13PTB022A	Hydrophobic PTFE	13	0.22	100
S13PTB045A		13	0.45
S25PTB022A		25	0.22
S25PTB045A		25	0.45
S30PTB022A		30	0.22
S30PTB045A		30	0.45
S13PTL022A	Hydrophilic PTFE	13	0.22	100
S13PTL045A		13	0.45
S25PTL022A		25	0.22
S25PTL045A		25	0.45
S30PTL022A		30	0.22
S30PTL045A		30	0.45
S13PVB022A	Hydrophobic PVDF	13	0.22	100
S13PVB045A		13	0.45
S25PVB022A		25	0.22
S25PVB045A		25	0.45
S30PVB022A		30	0.22
S30PVB045A		30	0.45
S13PVL022A	Hydrophilic PVDF	13	0.22	100
S13PVL045A		13	0.45
S25PVL022A		25	0.22
S25PVL045A		25	0.45
S30PVL022A		30	0.22
S30PVL045A		30	0.45
S13RC022A	RC	13	0.22	100
S13RC045A		13	0.45
S25RC022A		25	0.22
S25RC045A		25	0.45
S30RC022A		30	0.22
S30RC045A		30	0.45
S13PP022A	PP	13	0.22	100
S13PP045A		13	0.45
S25PP022A		25	0.22
S25PP045A		25	0.45
S30PP022A		30	0.22
S30PP045A		30	0.45
S13GF045A	GF	13	0.45	100
S13GF070A			0.70
S13GF100A			1.0
S25GF045A		25	0.45
S25GF070A			0.70
S25GF100A			1.0
S30GF045A		30	0.45
S30GF070A			0.70
S30GF0100A			1.0

Shopping cart

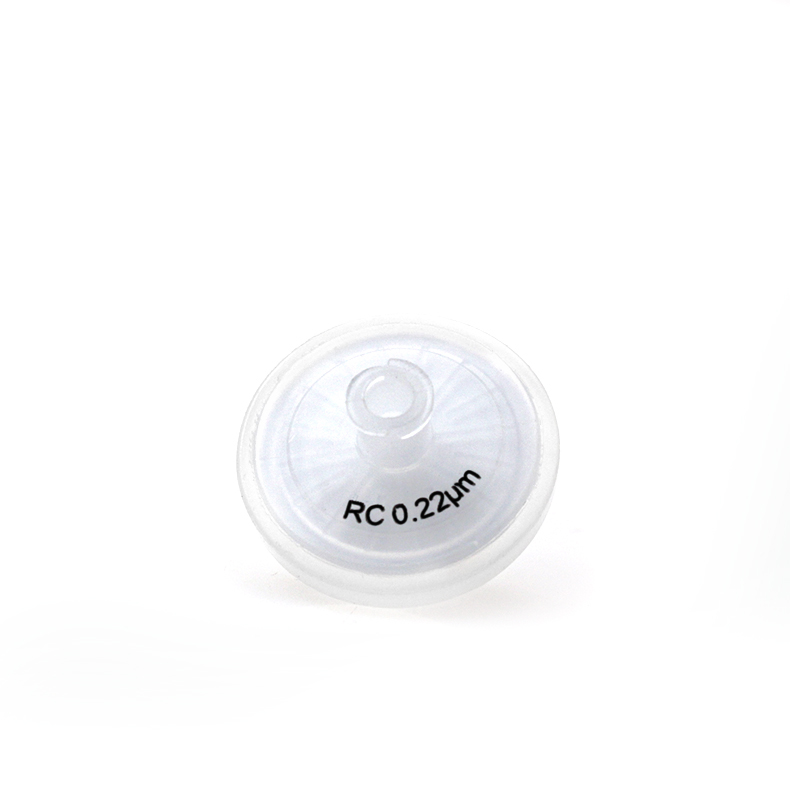

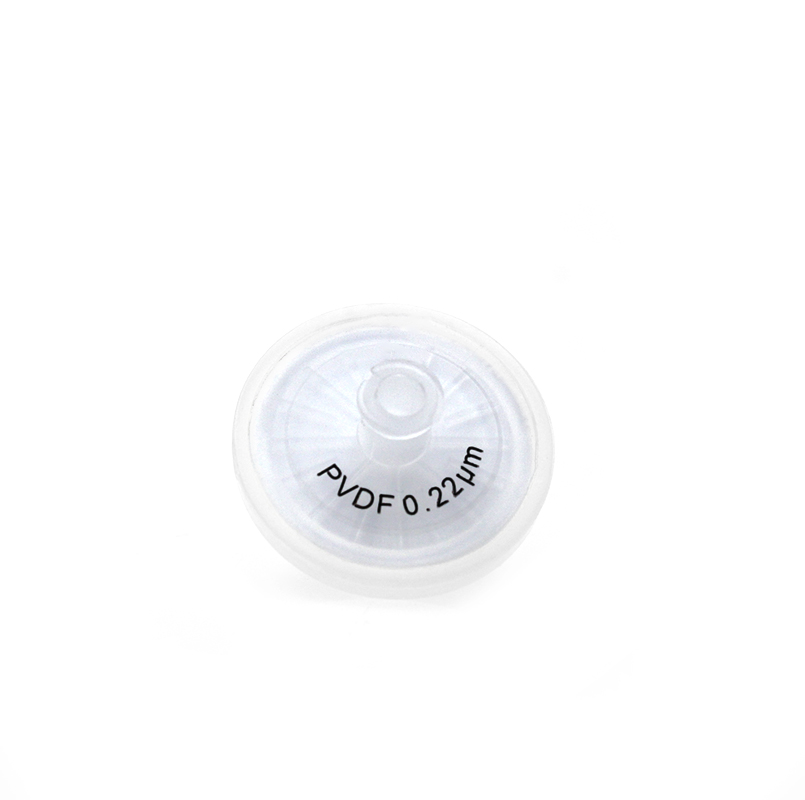

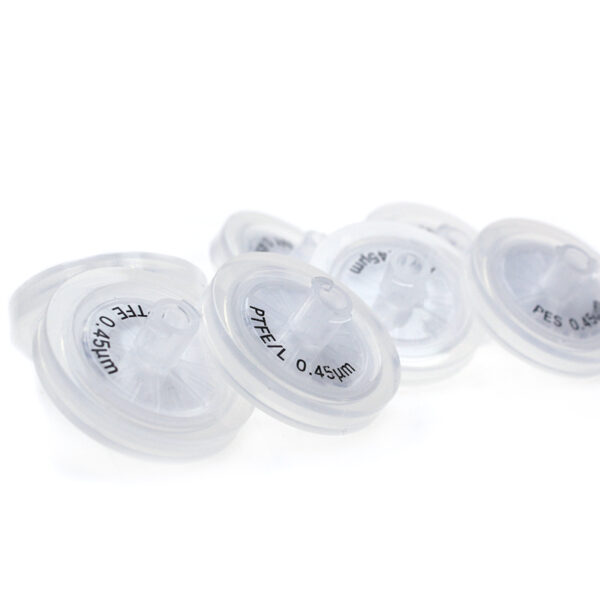

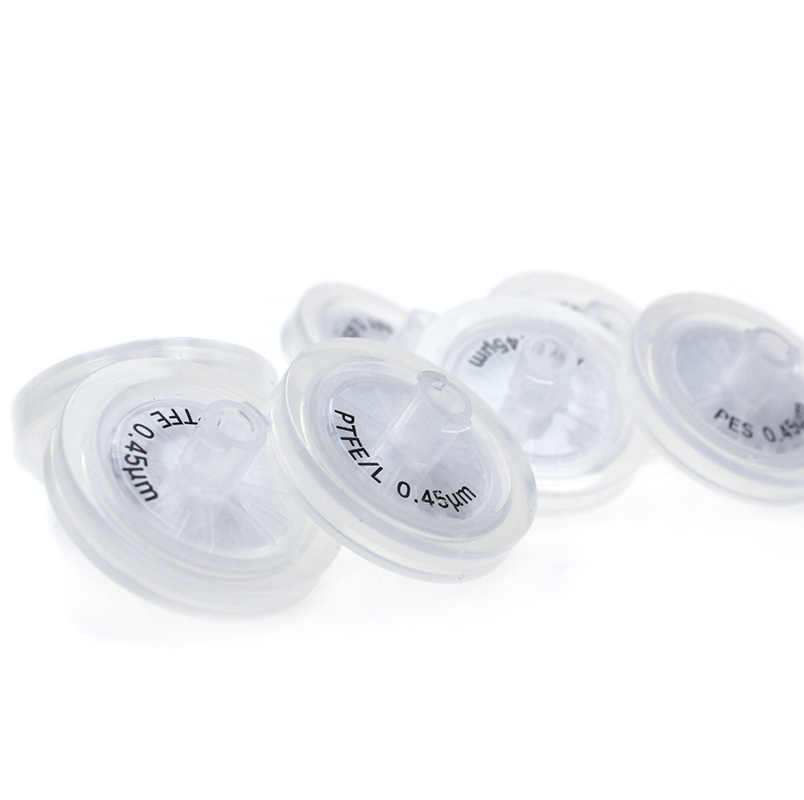

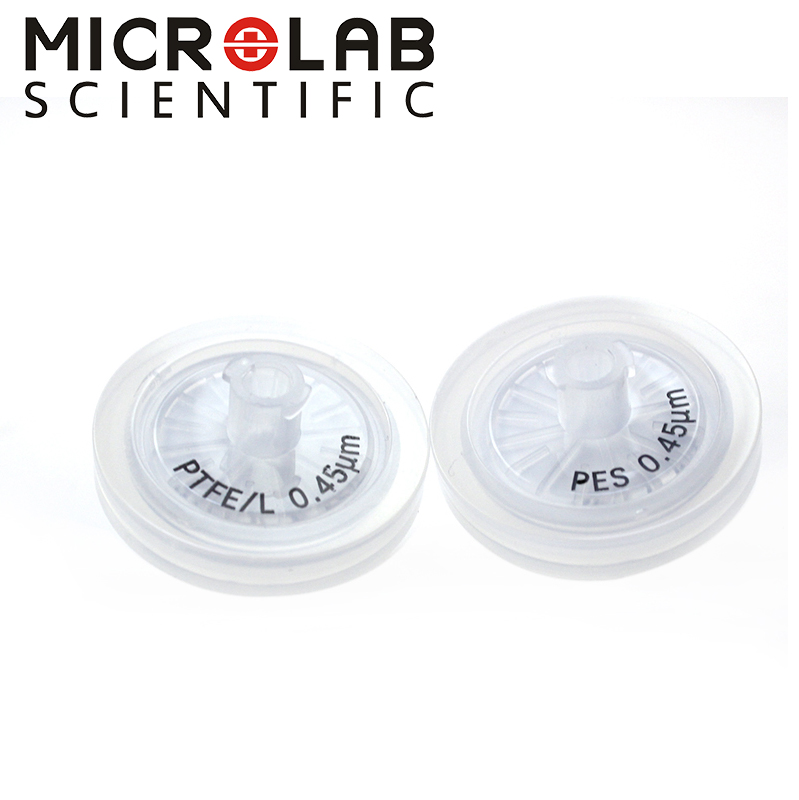

Allfil™ Syringe Filter

Chromatography sample preparation.eneral particulate removal.Particle-laden solutions filtration.

Features

1.Diameter: 13mm, 25mm,30mm. 2.Housing Material: PP without any coloradditive 3.One lay membrane structure,Low dissolution and Ultra Low Retention both suitable for HPLC and biological filtration. 4.Injection molding, high burst pressure

TECHNICAL SPECIFICATIO

ORDER INFORMATION

Part No.

Membrane

Diameter(mm)

Pore Size(μm)

Packing(pcs/pk)

Related products

1.Diameter: 13mm, 25mm,30mm.
2.Housing Material: PP without any coloradditive
3.One lay membrane structure,Low dissolution and Ultra Low Retention both suitable for HPLC and biological filtration.
4.Injection molding, high burst pressure
