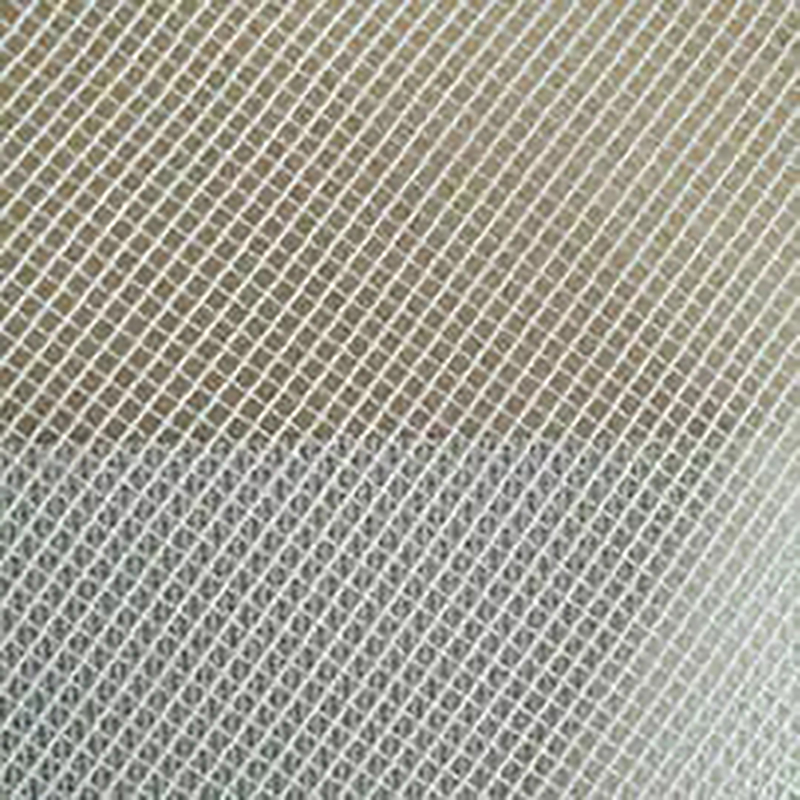

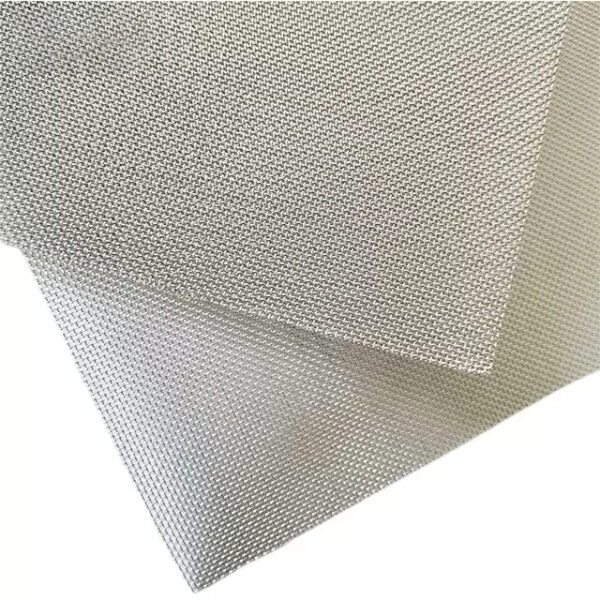

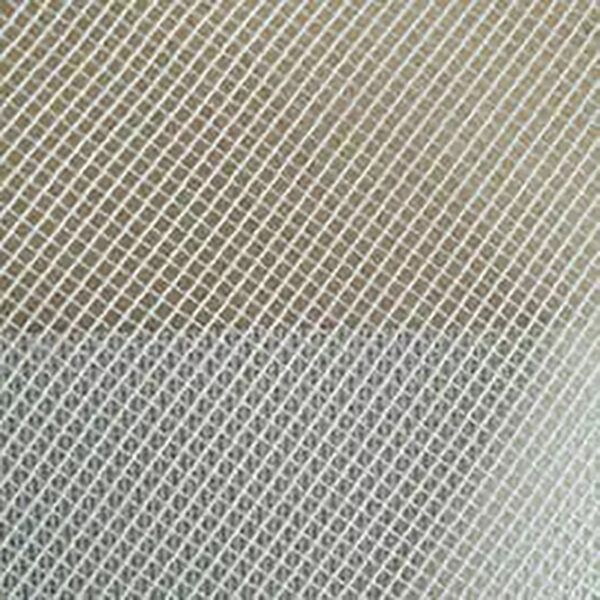

Microlab® Nylon Mesh Filter is made by woven monofilament type PA6(1:1 Weaving Methods), characterized precise mesh opening, percent open area and mesh thickness, with a broad range of solvent. Nylon Mesh Filter with mesh openings ranging from 10 to 180µm, can be fully meet the most stringent requirements of our customers.

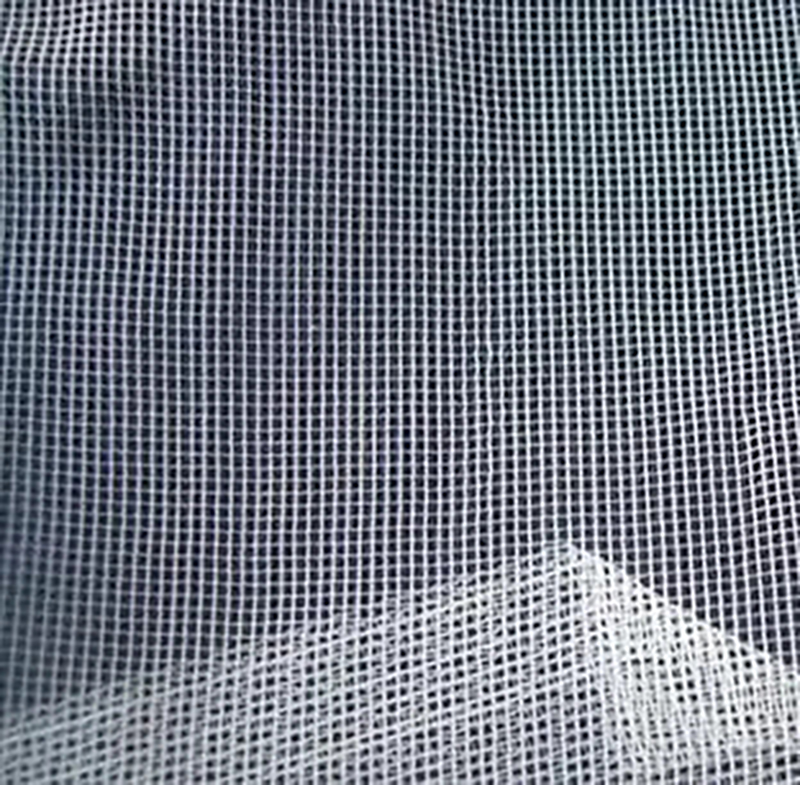

Microlab® Polypropylene (PP) Mesh Filters are ideally suited for general clarifying and prefiltration of solvents and contamination analysis. PP mesh filters are made of 100% virgin polypropylene. PP mesh filters also provide broad chemical compatibility.
TECHNICAL SPECIFICATIO
Filter Media |
Mesh Opening (μm) |
Open surface (%) |
Thickness (μm) |
Weight (g/m2) |
| Nylon Mesh | 30 | 19 | 68 | 51 |
| 41 | 23 | 70 | 42 | |
| 60 | 32 | 65 | 35 | |
| 80 | 36 | 90 | 43 | |
| 100 | 37 | 105 | 50 | |
| 120 | 44 | 85 | 44 | |
| 140 | 36 | 190 | 87 | |
| 180 | 41 | 178 | 78 | |
| PP Mesh | 100 | – | – | – |
| 150 | – | – | – |
ORDER INFORMATION
Part No |
Diameter（mm） |
Filter Media |
Pore Size(μm) |
|
ME47NY030 |
47 | Nylon Mesh |
30 |
|
ME47NY041 |
47 | Nylon Mesh | 41 |
| ME47NY060 | 47 | Nylon Mesh | 60 |
| ME47NY080 | 47 | Nylon Mesh | 80 |
| ME47NY100 | 47 | Nylon Mesh | 100 |
| ME47NY120 | 47 | Nylon Mesh | 120 |
| ME47NY140 | 47 | Nylon Mesh | 140 |
| ME47NY180 | 47 | Nylon Mesh | 180 |
| ME47PP100 | 47 | PP Mesh | 100 |
|
ME47PP150 |
47 | Pp Mesh | 150 |
