TECHNICAL SPECIFICATION
Dimension |
[ OD ] 69mm,115mm
[ ID ]:Φ 28mm, 30mm [ Length ]:10″,20″,30″,40″ |
Material of Constructions |
[ Media ] Polypropylene，Bleached cotton，Glass Fiber [ Core ]:PP,Stainless Steel |
Performance |

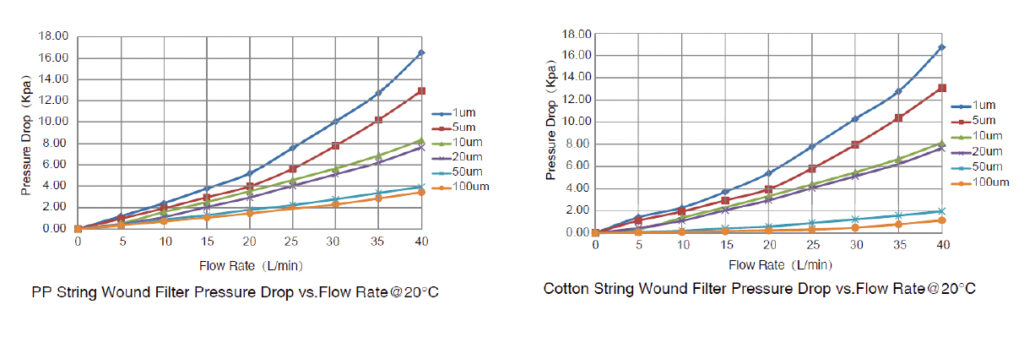

[ Max. Operating temperature] Polypropylene(PP):80℃ Bleached cotton:120℃ Glass Fiber:200℃ [ Max. Operating DP ]:2.0bar@25℃ |
ORDER INFORMATION
Outer Diameter |
Material |
Removal Rating |
End Cap Type |
Length |
Seal Material |
| O=63mm
B=115mm |
A=PP yarn and
PP core B=Cotton yarn and SS core C=Cotton yarn and PP core D=Glass fiber and SS core |
1=1μm
5=5μm 10=10μm 20=20μm 50=50μm 75=75μm 100=100μm |
F=DOE
M=222/Flat P=222/Fin T=226/Flat Q=226/Fin |
10=10″(254mm)
20 =20″(508mm) 30=30″(762mm) 40=40″(1016mm) |
S=Silicone
E=EPDM B=NBR V=Viton |
Core |
|||||
| P=PP core
S=SS core |
