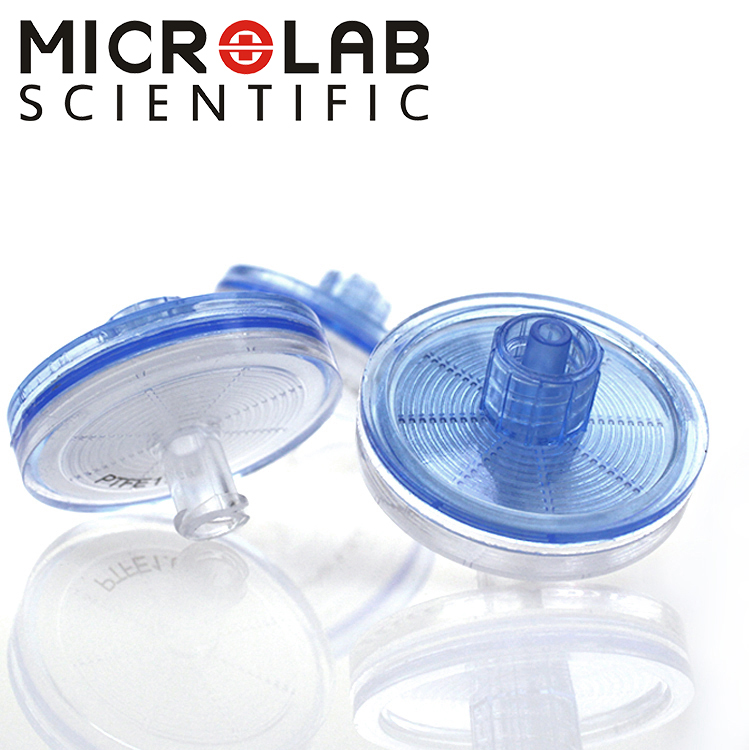

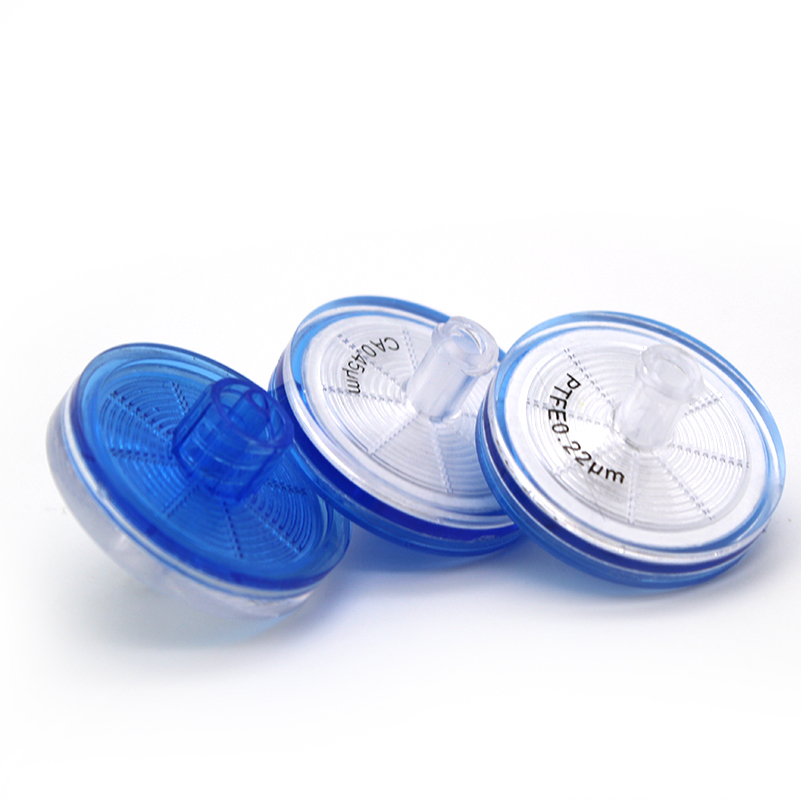

DLLFil™ Syringe Filter

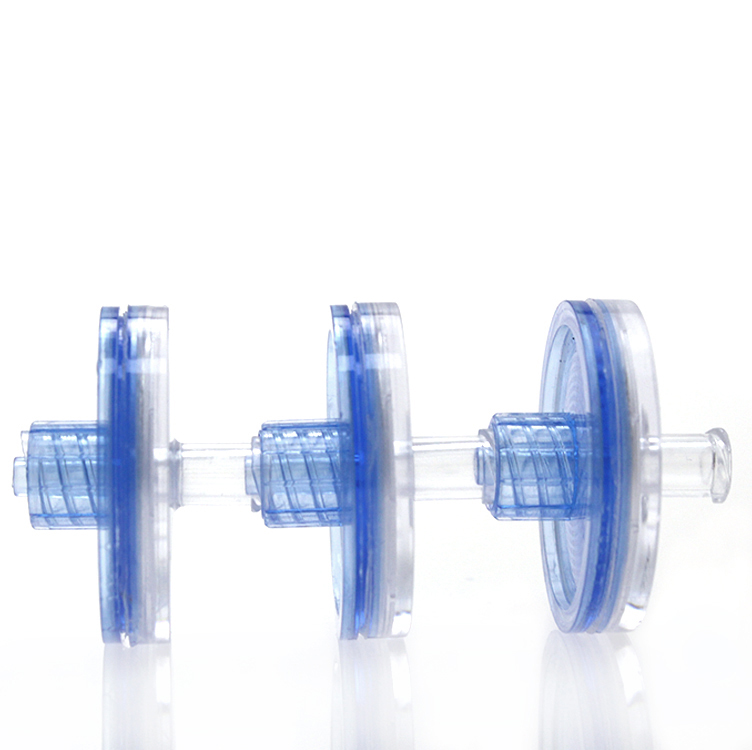

Double Luer Lock (DLL)Syringe Filters provides a high throughput sample filtration method with innovative connection way(Individual or Assembled). The Membrane filters are available for 33mm syringe filters in 0.2μm and 0.45μm. The range of Membrane including all common membranes, such as Nylon, PTFE, PES, MCE, CA, PVDF, GF, RC etc.

Features

1.Diameter: 28mm.
2.PC Housing, Strong Chemical compatibility
3.Double Luer Lock connection
4.Both singlelay membranes structure and prefilter available
5.Replacement of Sartorius’ Minisart Syringe Filter

Category: Syringe Filter

Description

TECHNICAL SPECIFICATIO

——————————————————————————————————————————————————————————————————————————————————————
Filter Media Nylon/PTFE/Hydrophilic PTFE/MCE/RC/CA/PES/PVDF/Hydrophilic PVDF
——————————————————————————————————————————————————————————————————————————————————————
Housing    PC
——————————————————————————————————————————————————————————————————————————————————————
Diameter(mm)   28
——————————————————————————————————————————————————————————————————————————————————————
Filtration Area(cm²) 5
——————————————————————————————————————————————————————————————————————————————————————
Sealing Technology   Ultrasonic welding
——————————————————————————————————————————————————————————————————————————————————————
Pore size(μm)   0.22,0.45——————————————————————————————————————————————————————————————————————————————————————
Max.operation pressure 6bar@23℃——————————————————————————————————————————————————————————————————————————————————————
Inlet/outlet connections    Female luer lock inlet/Male luer lock outlet——————————————————————————————————————————————————————————————————————————————————————

ORDER INFORMATION

Part No.	Membrane	Diameter(mm)	Pore Size(μm)	Packing(pcs/pk)
S28NY022D	NY	28	0.22	100
S28NY045D			0.45
S28PES022D	PES	28	0.22	100
S28PES045D			0.45
S28CA022D	CA	28	0.22	100
S28CA045D			0.45
S28MCE022D	MCE	28	0.22	100
S28MCE045D			0.45
S28PTB022D	Hydrophobic PTFE	28	0.22	100
S28PTB045D			0.45
S28PTL022D	Hydrophilic PTFE	28	0.22	100
S28PTL045D			0.45
S28PVB022D	Hydrophobic PVDF	28	0.22	100
S28PVB045D			0.45
S28PVL022D	Hydrophilic PVDF	28	0.22	100
S28PVL045D			0.45
S28RC022D	RC	28	0.22	100
S28RC045D			0.45
S28PP022D	PP	28	0.22	100
S28PP045D			0.45
S28GF045D	GF	28	0.45	100
S28GF070D			0.70
S28GF100D			1.0
