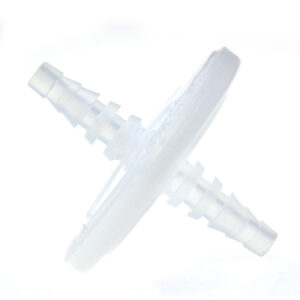

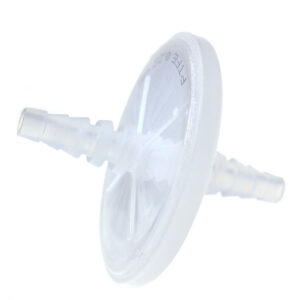

Vent Filter

Next product

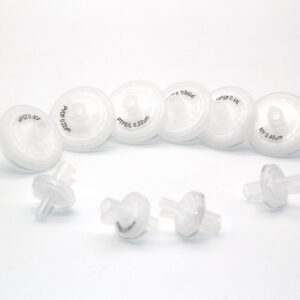

Bestfil™ Syringe Filter

Easyfil Syring Filter

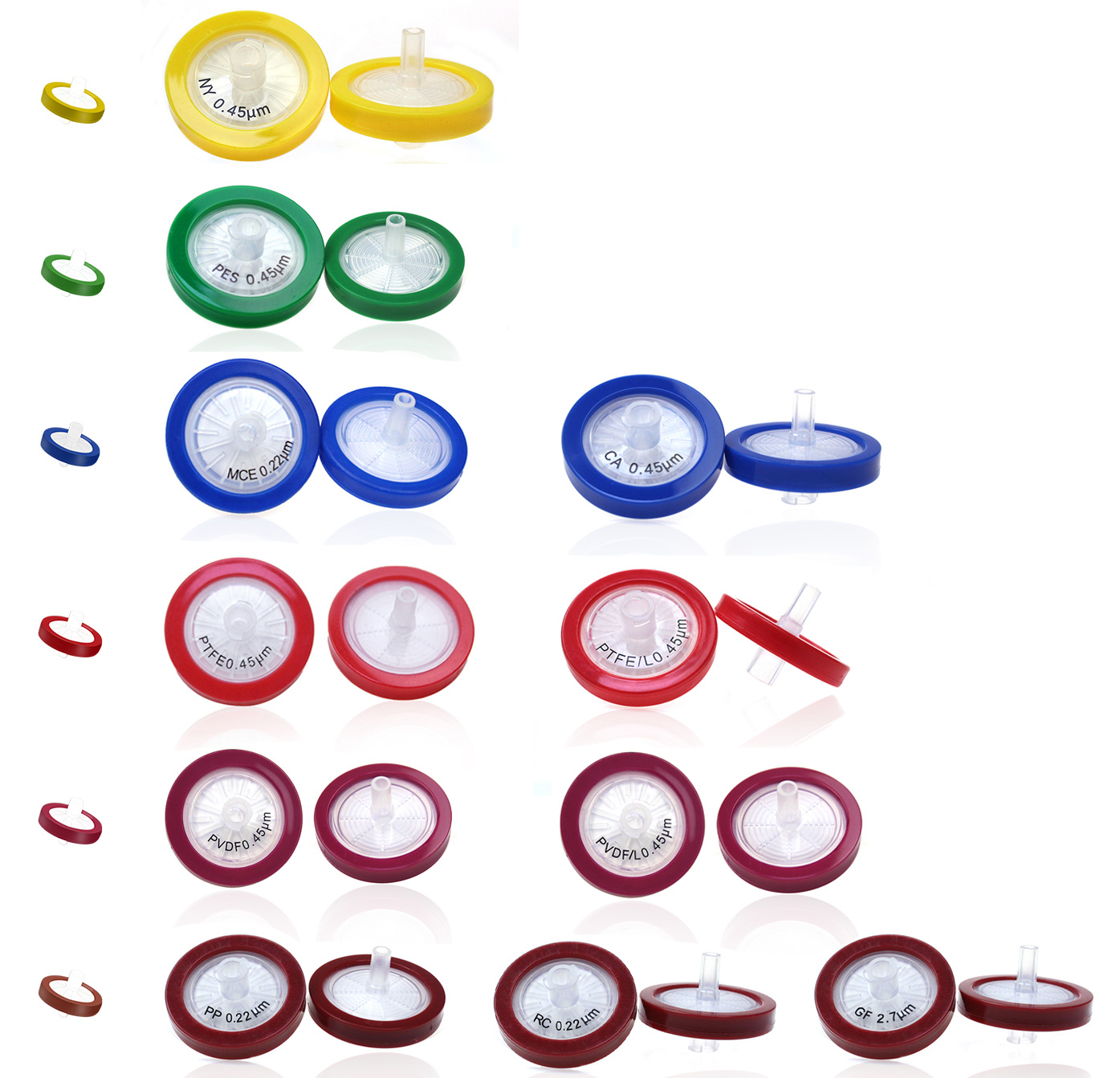

O1CN01pfwrQT28Tp5JrQvRm_!!2806987934.jpg_430x430q90

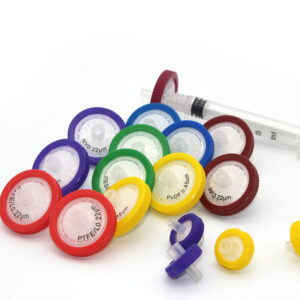

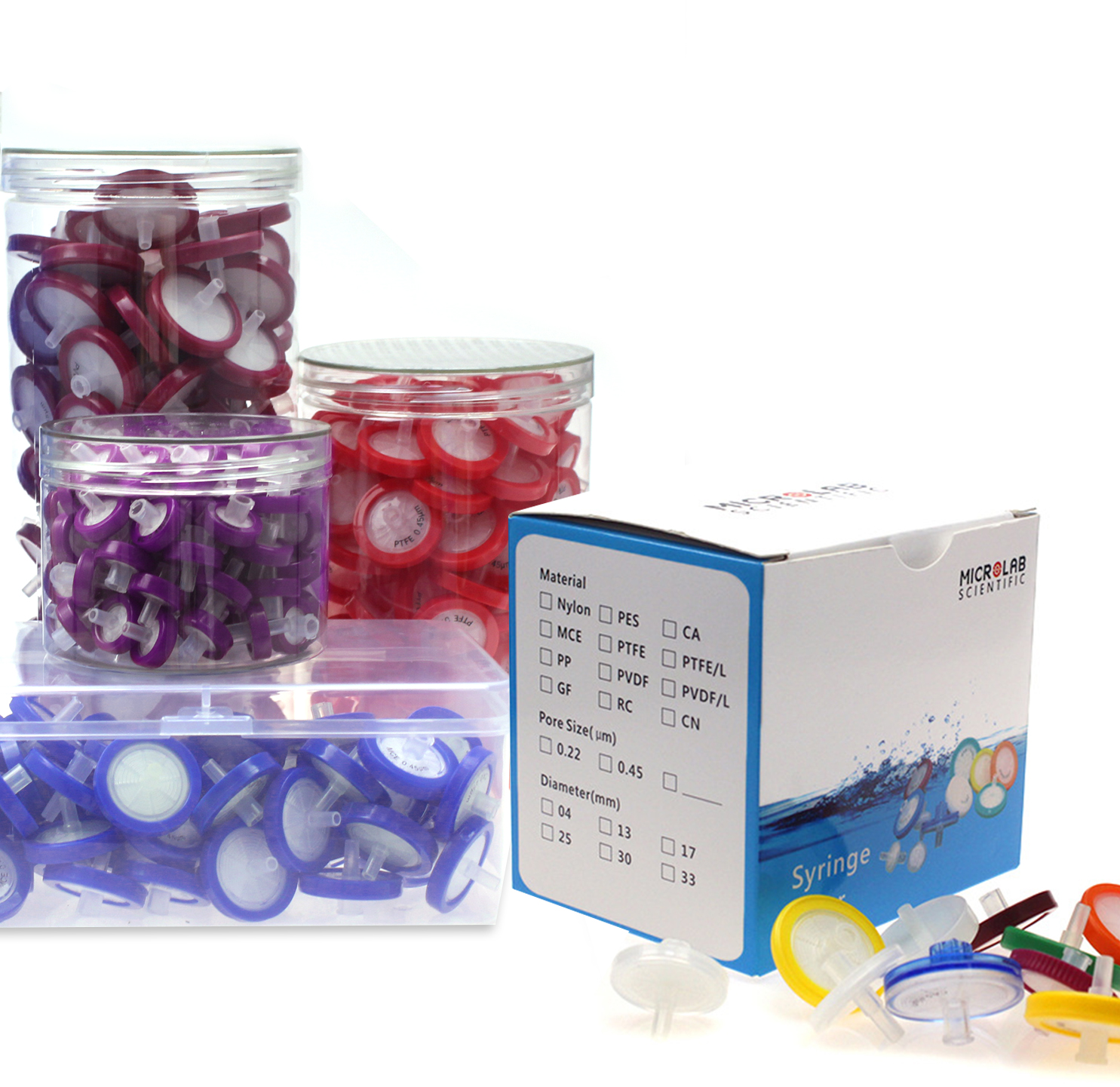

Easyfil™ Syringe Filter

Easyfil™ syringe filters are well packed, with competitive price filters. The membranes range from Nylon, CA, MCE, PES, PTFE, PVDF, GF, RC to PP, which are supplied in 13mm and 25mm no virgin medical PP housings.

Features

1.Diameter: 13mm&25mm
2.Color coding with printing easy to identification
3.One lay membrane structure, low dissolution suitable for HPLC
4.Injection molding, high burst pressure
5.Replacement of Agilent’s ValueLab Syringe Filter

Category: Syringe Filter

Description

TECHNICAL SPECIFICATION

——————————————————————————————————————————————————————————————————————————————————————
Filter Media Nylon/PTFE/Hydrophilic PTFE/MCE/RC/CA/PES/PVDF/Hydrophilic PVDF
——————————————————————————————————————————————————————————————————————————————————————
Housing PP
——————————————————————————————————————————————————————————————————————————————————————
Diameter(mm) 13,25
——————————————————————————————————————————————————————————————————————————————————————
Filtration Area(cm²)    1.09,2.98——————————————————————————————————————————————————————————————————————————————————————
Sealing Technology   Injection molding
——————————————————————————————————————————————————————————————————————————————————————
   Pore size(μm) 0.1,0.22,0.45,1.0,3.0,5.0——————————————————————————————————————————————————————————————————————————————————————
   Max.operation pressure 6 bar@ 23℃——————————————————————————————————————————————————————————————————————————————————————
Inlet/outlet connections Female inlet lock/Male outlet slip——————————————————————————————————————————————————————————————————————————————————————

ORDER INFORMATION

Part No.	Membrane	Diameter(mm)	Pore Size(μm)	Packing(pcs/pk)
S13NY022E	Nylon	13	0.22	100
S13NY045E			0.45
S25NY022E		25	0.22
S25NY045E			0.45
S13PES022E	PES	13	0.22	100
S13PES045E			0.45
S25PES022E		25	0.22
S25PES045E			0.45
S13CA022E	CA	13	0.22	100
S13CA045E			0.45
S25CA045E		25	0.22
S25CA045E			0.45
S13MCE022E	MCE	13	0.22	100
S13MCE045E			0.45
S25MCE022E		25	0.22
S25MCE045E			0.45
S13PTB022E	Hydrophobic PTFE	13	0.22	100
S13PTB045E			0.45
S25PTB022E		25	0.22
S25PTB045E			0.45
S13PTL022E	Hydrophilic PTFE	13	0.22	100
S13PTL045E			0.45
S25PTL022E		25	0.22
S25PTL045E			0.45
S13PVB022E	Hydrophobic PVDF	13	0.22	100
S13PVB045E			0.45
S25PVB022E		25	0.22
S25PVB045E			0.45
S13PVL022E	Hydrophilic PVDF	13	0.22	100
S13PVL045E			0.45
S25PVL022E		25	0.22
S25PVL045E			0.45
S13PP022E	PP	13	0.22	100
S13PP045E			0.45
S25PP022E		25	0.22
S25PP045E			0.45
S13RC022E	RC	13	0.22	100
S13RC045E			0.45
S25RC022E		25	0.22
S25RC045E			0.45
